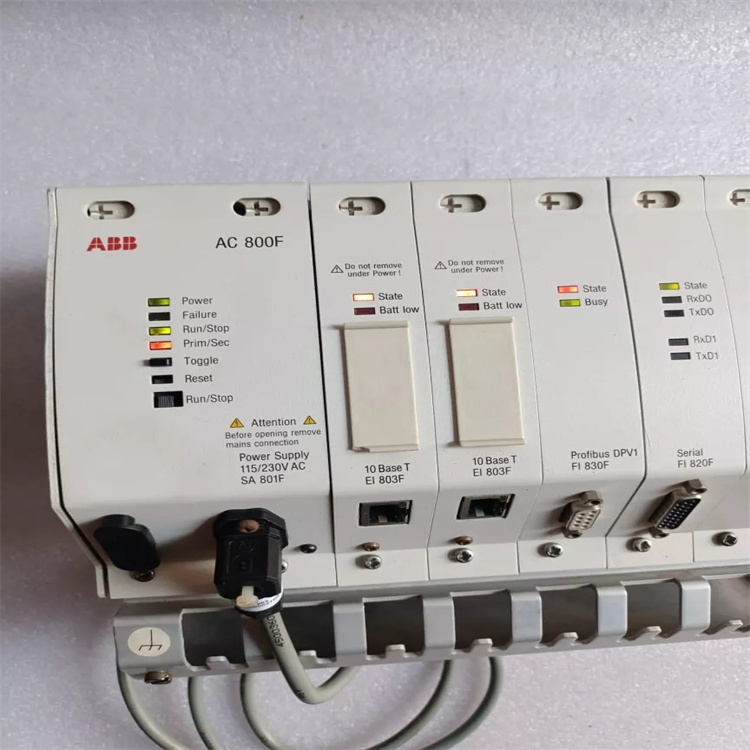

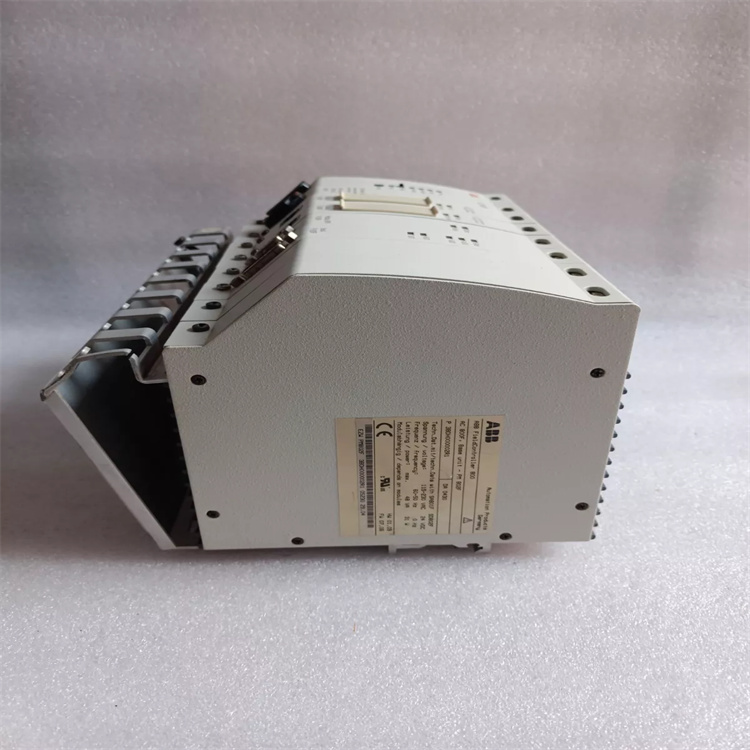

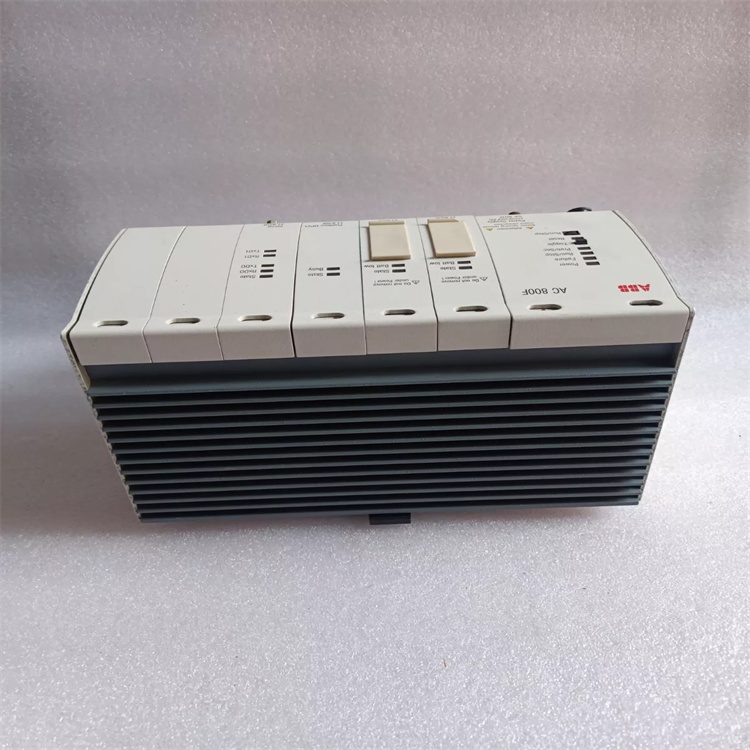

ABB  AC 800F Redundant fieldbus controller

The AC 800F controller has a modular structure. The CPU is designed as a backplane to connect different modules - power supply unit, Ethernet and fieldbus modules - according to different applications. The main supported bus protocols include:

PROFIBUS-DPV1

FOUNDATION Fieldbus HSE

MODBUS (Master/slave, RTU or ASCII)

IEC 60870-5-101, IEC 60870-5-104

CAN bus for Freelance rack-mounted I/O

The fieldbus and device connection can be configured and parameterized entirely through the Freelance engineer station software. No additional external software tools are required for the configuration process.

Technical data

CPU 32-bit super scalar RISC processor for fast bit processing

RAM 16 MB (SD-RAM) for battery backup applications

Periodic task execution (Configurable cycle time: 5 ms)

Event-driven (predefined events)

As fast as possible (PLC mode)

Interface Ethernet

PROFIBUS

FOUNDATION Fieldbus

MODBUS TCP

CAN bus

Serial Port:

RS485/422/232

Modbus protocol

IEC 60870-5-101 Telecontrol protocol

External temperature 0... 60°C (32... 140°F), no forced cooling is required

CE, NAMUR, UL, ISA-S71.04 (G3 severity level)
